PP Manure Belts

Conveyor belt for collection manure in poultry house

Conveyor belt for collection manure in poultry house

Conveyor belt for collection manure in poultry house
Product description: Conveyor belt for collection manure in poultry house
INQUIRY

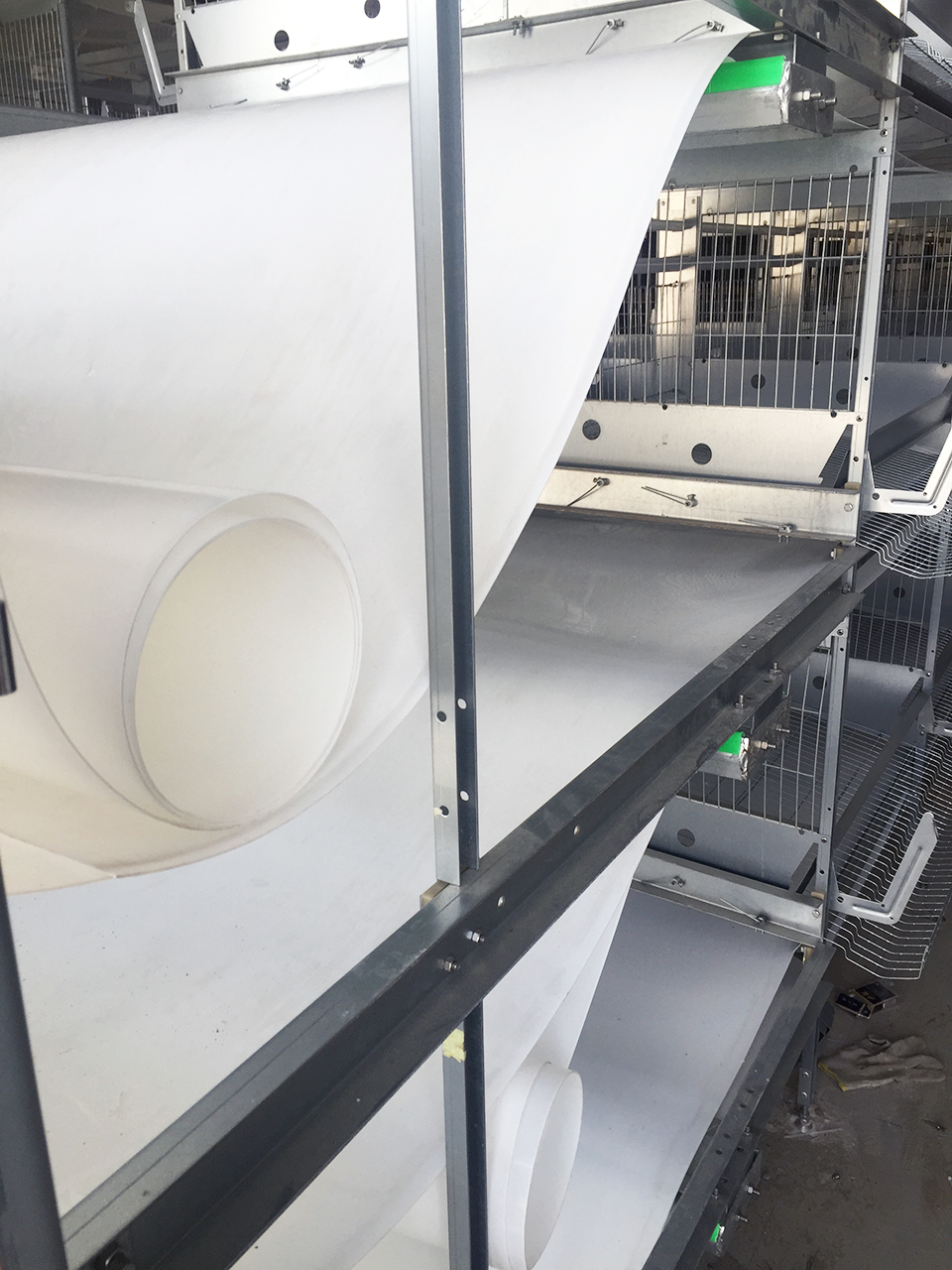

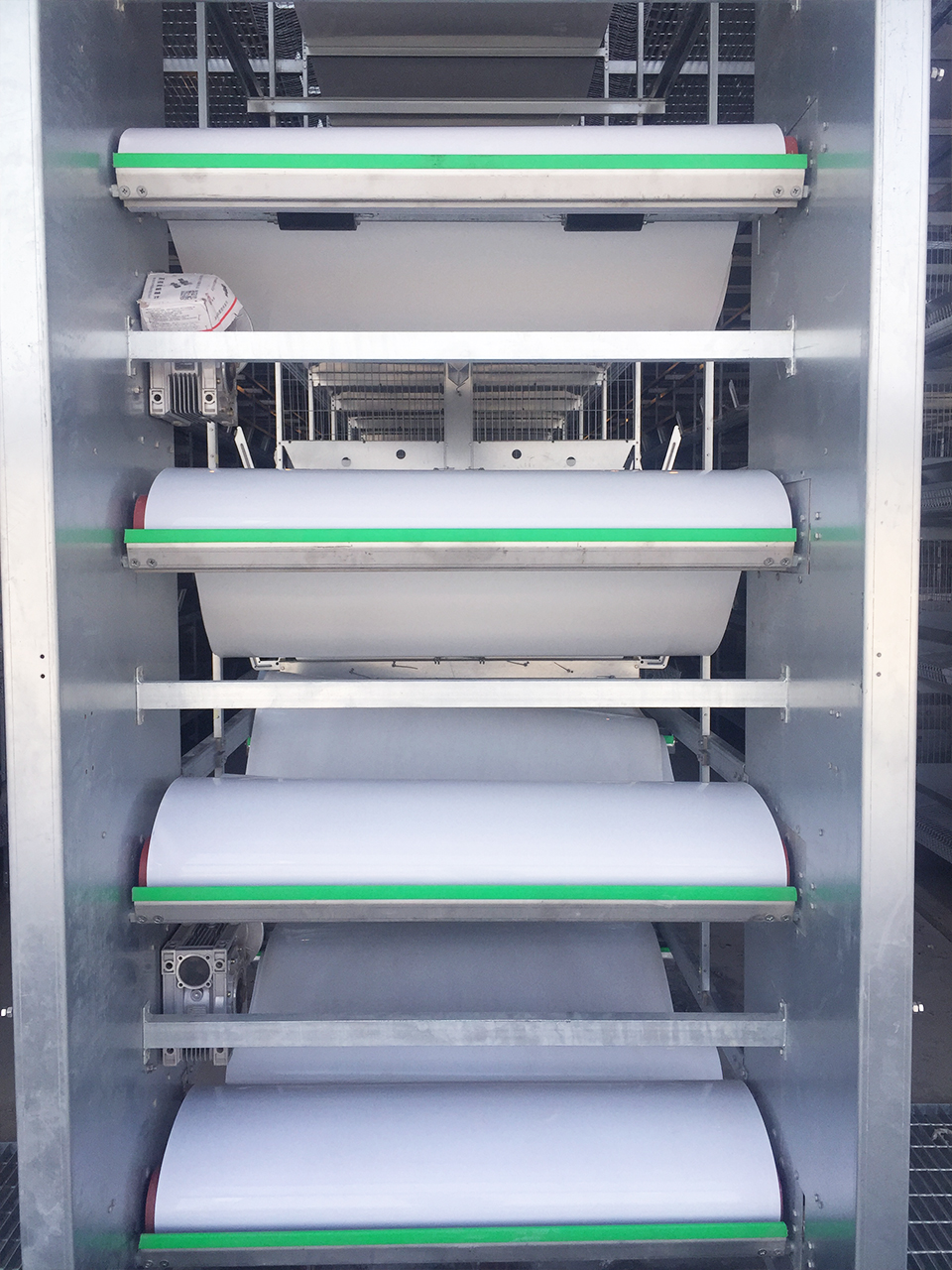

The PP manure belts is specially used for manure collection and removing from poultry cages.

The manure belt is made of virgin polypropylene material with additive of anti-aging formula.

Here below the features,

1. high tensile strength,

2. impact and corrosion resistance,

3. low temperature resistance to -50 degrees,

4. strong toughness,

5. low friction coefficient,

6. adaptable to various working environments.

The thikness is 0.8mm-2.0mm, width between 100mm and 2,800mm, length per roll as required by customers, till 1,000m. Color is bright white for common used, other color can be customized.

Testing report:

Item		PP Manure Belt		Specification	1.1mm1,200mm300m
Production Standard		Q/320281HQW06-2022
Producing Date		4/3/2022		Batch No.	ZU20220403
Sample Quantity		1m²		Sample Cardinality	700m²
No.	Test		Standard Value		Testing Result	Conclusion
1	Tensile Strength/Mpa		Widthways≥30		Widthways:35.8	Qualified
			Lengthways≥35		Lengthways:40.2	Qualified
2	Breaking Elongation/%		≥550		Widthways:775	Qualified
					Lengthways:662
3	Breaking Strength/N		≥120		Widthways:134	Qualified
					Lengthways:147
4	Size Change Rate Of Heat Treatment/%		≤2%		0.3%	Qualified
5	Cold Bending		-40℃ No Cracking		No Cracking	Qualified
6	Thickness Tolerance/Mm		Allowable Tolerance±0.02mm		+0.01	Qualified
7	Width Tolerance/Mm		Allowable Tolerance±3mm		0	Qualified
8	Length Tolerance/m		Allowable Tolerance+0.5m		+0.5m	Qualified
9	Surface		No Cracking, No Bubble Or Hole		Meeting Standard	Qualified
